Bug #1654

closed

tech upkeep seems to overflow at 2^16

Added by Marco Schuler 9 days ago. Updated 2 days ago.

Status:
Closed
Priority:
Normal
Category:
General
Target version:
Start date:
08/17/2025
Due date:
% Done:

0%

Estimated time:

Description

I have a game on a rather large map and a ruleset with tech upkeep.

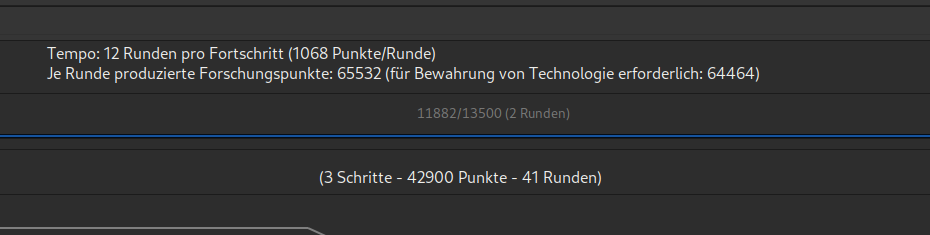

I have a save-game where I produce 65532 bulbs of which 64464 are required for tech upkeep, resulting in a net plus of 1068 bulbs. Everything works as expected. (see screenshot stat_a.png)

When increasing research income via city settings, I get 65730 bulbs, still requiring 64464 as upkeep, resulting in a net plus of 1266 bulbs. Still, everything is fine. Note that the research income is above 2^16. (see stat_b.png)

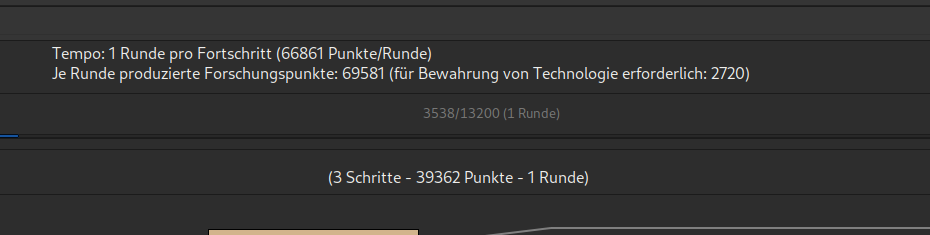

After researching one more tech and further increasing research income there seems to be a problemn. My research income is now 69581 bulbs (which is correct) but my upkeep cost is now reduced to 2720, resulting in a net plus of 66861 bulbs. I assume, the correct value for the upkeep cost would be 68256 (2720 + 65536) and the actual number I get seems to be the result of an overflow. (see stat_c.png)

Two according savegames are attached. The first (year 2296) with the initial setting (both numbers below 2^16) and the second (year 2298) with the bug (both numbers above 2^16 but the upkeep is wrong).

The game identifies as:
Dies ist Freeciv Version 3.0.6, gui-gtk-3.22-Klient.
Built against gtk+ 3.24.36, using 3.24.38
Built against glib 2.74.5, using 2.74.6


Files

stat_a.png (20.8 KB) stat_a.png both below Marco Schuler, 08/17/2025 10:02 AM
stat_b.png (20 KB) stat_b.png one above, one below Marco Schuler, 08/17/2025 10:02 AM
stat_c.png (20.7 KB) stat_c.png both above, but not Marco Schuler, 08/17/2025 10:02 AM
freeciv-T0722-Y02296-manual.sav.xz (751 KB) freeciv-T0722-Y02296-manual.sav.xz Marco Schuler, 08/17/2025 10:05 AM
freeciv-T0724-Y02298-manual.sav.xz (753 KB) freeciv-T0724-Y02298-manual.sav.xz Marco Schuler, 08/17/2025 10:06 AM
0030-Protocol-Make-tech_upkeep-a-32-bit-value.patch (802 Bytes) 0030-Protocol-Make-tech_upkeep-a-32-bit-value.patch main, S3_3 Marko Lindqvist, 08/17/2025 03:09 PM
0010-Protocol-Make-tech_upkeep-a-32-bit-value.patch (2.89 KB) 0010-Protocol-Make-tech_upkeep-a-32-bit-value.patch S3_2 Marko Lindqvist, 08/17/2025 03:09 PM
0009-Protocol-Make-tech_upkeep-a-32-bit-value.patch (2.88 KB) 0009-Protocol-Make-tech_upkeep-a-32-bit-value.patch S3_1 Marko Lindqvist, 08/17/2025 03:10 PM
Actions #1

Updated by Marco Schuler 9 days ago

forgot to mention the OS and the source of FreeCiv:

I'm on Debian bookworm with all updates and use the distribution provided version of FreeCiv

Actions #2

Updated by Marko Lindqvist 9 days ago

  • Category set to General

The overflow seems to be only in the network protocol, so only client side (display to the player) has the wrong value. Server side should still use the correct value.

There's a message from the server in the chat window:
Trying to put 68256 into 16 bits; it will result 2720 at receiving side.

Actions #4

Updated by Marko Lindqvist 2 days ago

  • Status changed from In Review to Closed
